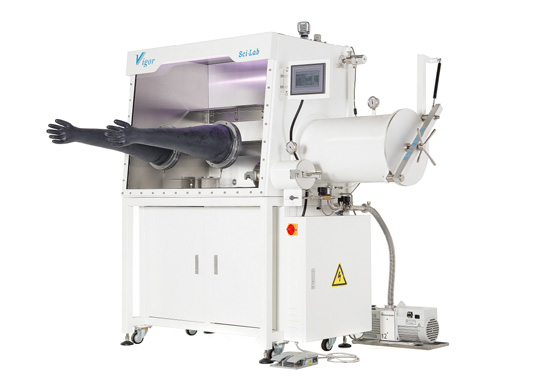

Standard Gloveboxes

Vigor’s standard glovebox is a top-of-the-line glovebox model: Our super-high purifier capacity and patented sealing technology are complimentary. Vigor's all-welded stainless-steel design minimizes potential points of leakage and allows you to have a fast and easy initial set up. Our unique seals enable our gloveboxes to experience exceptionally low leakage rates (<0.001 vol%/h). We combine our exceptional all-welded platform with the expected high quality ancillary components: Siemens PLCs, Burkert valves, Edwards vacuum pumps, General Electric fuel cell oxygen analyzers, General Electric or Michell moisture analyzers, and Fuji blowers. Our purification train is also an impressive performer: its capacity is typically 2-3 times higher than that of other gloveboxes. Any accessory that you need to make your research easier can easily be integrated since each glovebox is custom made.

Inquire Now

Features Specifications Dimensions Optional Accessories

Features

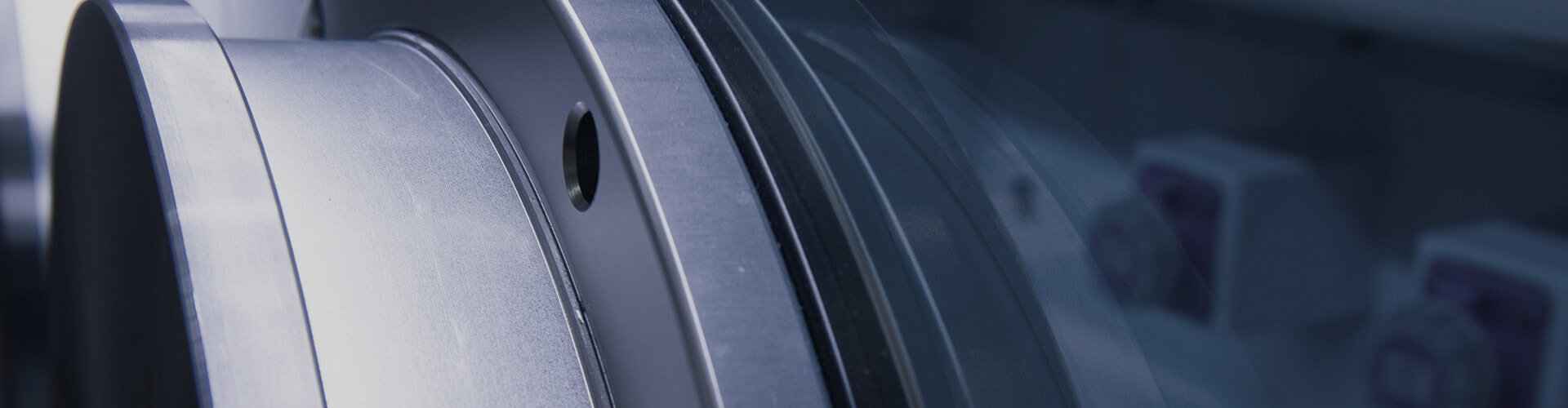

Patented Leak Free Sealing Technology
▪  Ultra-low leakage rate (over an order of
magnitude lower than the industry standard
of 0.05 vol%l/h)
▪  Ultra-low impurity levels (O₂ and H₂O quickly
drop below 1 ppm)
▪  Low regeneration frequency (usually once
per year)
▪  Long seal lifetime, often over 10 years without
any signs of leakage
▪  Ultra-low energy consumption

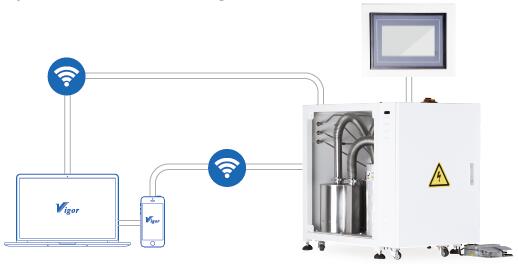

High Efficiency Purificaiton System
▪ High Efficient
▪ Low moisture and oxygen contents
(<1 ppm)
Accurate O₂ & H₂O Analysis
▪  Oxygen Analyzer:
Excellent Accuracy, especially at low ppm
Not affected by solvents
Low cost, replaceable sensor
▪  Moisture Analyzer:
Accurate, reliable, widely used
No maintenance required
Low cost, replaceable sensor

Specifications

Box	Material	304SS
	Dimensions (mm)	Length: 1200/1500/1800/2400mm
		Width: 750mm
		Height: 900mm
	Shelves	Length: 990/1290mm
		Width: 180mm
		304SS
		Fixed or adjustable shelves
	Window	Toughened glass
	Window	Thickness: 8mm
	Lighting	LED
	Glove Ports	Aluminum
		O-ring Sealed
		Diameter: 220mm
	Gloves	Butyl rubber
	Gloves	Thickness: 0.4mm
	Feedthrough	KF 40 flanges sealed with blank caps
	Power Interface	110/220V
	Filters	Mounted on the vents
Large Antechamber	Material	304SS
		White external varnish
		Brushed inner surface
	Location	Left or right side
	Dimensions	Inner diameter: 370mm
	Dimensions	Inner length: 600mm
	Transfer Mode	Sliding tray
	Internal Tray	304SS
	Door	Double doors
		Anodised aluminum
		Thickness: 10mm
	Operation Mode	Manual and automatic
	Optional Antechamber	Rectangle/L-shaped/Cylindrical T-shaped/Rectangle T-shaped
Small Antechamber	Material	304SS
		White external varnish
		Brushed inner surface
	Location	Left or right side
	Dimensions	Inner diameter: 150mm
	Dimensions	Inner length: 300mm
	Transfer Mode	Sliding tray
	Internal Tray	304SS
	Door	Double doors
		Anodised aluminum
		Thickness: 10mm
	Operation Mode	Manual
Stand	Adjustable levelers and castors for mobility
Power Line	120V/60Hz, option for 2 or 3 prong outlet

Dimensions

Width

750mm
1000mm

Length

1200mm
1500mm
1800mm
2400mm

Combination

Arbitrary Length

Optional Accessories

▪ Oxygen Analyzer

▪ Moisture Analyzer

▪ Protector for Moisture/Oxygen Analyzer

▪ Gas/Liquid/Vacuum Feedthrough with single-valve

▪ Gas/Liquid/Vacuum Cooling Feedthrough

▪ Gas/Liquid/Vacuum Feedthrough with double-valve

▪ Electrochemical Feedthrough

▪ BNC Feedthrough

▪ Power Feedthrough

▪ Power Plug

▪ Activated Carbon

▪ Copper Catalyst & Molecular Sieve

▪ Oil Pump

▪ Dry Pump

▪ Oil for Vacuum Pump

▪ Air Conditioner

▪ Freezer

▪ Heat/Cold Trap

▪ Hot Plate

▪ Heating Antechamber（Cylindrical）

▪ T-shaped Antechamber

▪ Oil-mist Filter & Oil-return Device

▪ Glove-port Cover

▪ Static Eliminator

▪ Dedusting System

▪ Spin Coater

▪ Microscope

▪ OLED Packing System

Gas Purification Systems

Standard Gloveboxes

Sing/Double Column/Regenerable Organic Column:

Items	Single Column	Double Column	Regenerable Organic Column
Dimensions（mm）LxWxH	550x880x830	610x1180x830	605x880x830
Gas Purification Column	1	2（One for backup）	1
Capacity	O₂：45-60L H₂O：2-2.5kg	O₂：90-120L H₂O：4-5kg	-
It can be regenerated by hydrogen-containing working gas to restore purification capacity after saturation.
Organic Solvent Column	1		1
Organic Solvent Column	1		Regenerable
Circulation Blower	1 (Rate of Flow: 60 or 90m³/h)

Technical Parameter:

▪ Control System: PLC by Siemens, 7"color touchscreen

▪ Vacuum Pump: Oil pump，Maximum velocity: 12m3/h

▪ Tube: Stainless steel

▪ Main Control Valve: Electromagnetic pneumatic valve/Electric pneumatic control

▪ Working Gas: N₂, Ar, H₂

▪ Regeneration Gas: N₂, Ar & H₂ mixture (H₂ Concentration：5-10 %)

▪ Operation Mode: Closed-circuit circulation

▪ Purification Area: Maximum: 5m³

▪ Criterion: H₂O＜1PPM；O₂＜1PPM

▪ Regeneration: Automatic programming

▪ Box Pressure Control: Automatic pressure control，pedal and manual control (Adjustable Pressure Range：± 10mbar)
